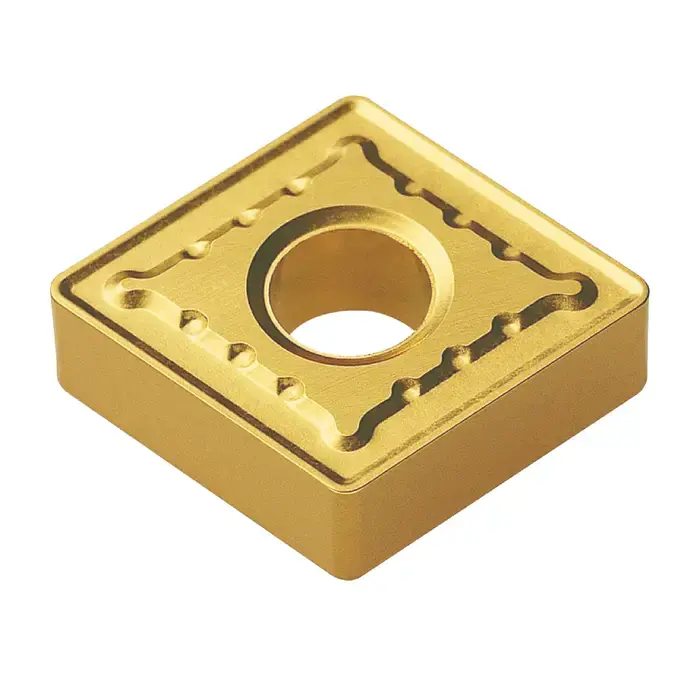

New Arrival KORLOY 1-02-024923 – CNMG542-GR NC3030, 80° Diamond, Indexable Carbide Turning / Boring Insert

Applications

This CNMG542-GR NC3030 insert supports cutting speeds from 427 to 820 sfm, feeds ranging from 0.008 to 0.028 in/rev, and depths of cut up to 0.315 in. It is designed for medium to low-speed roughing with general to interrupted cutting applications. It is suitable primarily for ISO P25-P35 steel and secondarily for M25-M35 stainless steel. The negative rake chipbreaker and robust 80° diamond shape provide excellent edge strength and stability, making it ideal for interrupted cuts and heavy roughing in rigid setups.

Features

• 80° Diamond Shaped Indexable Inserts.
• Versatile and dependable, “C” shaped inserts are one of the most popular shapes in the industry.
• Negative inserts can provide up to 8 cutting edges, four 80° cutting edges and four 100° cutting edges (seperate holder needed to utilize 100° cutting edge).
• The 100° cutting edges are ideal for facing operations.
• Available in multiple chipbreakers & grades.
