Limited Time DMC1550

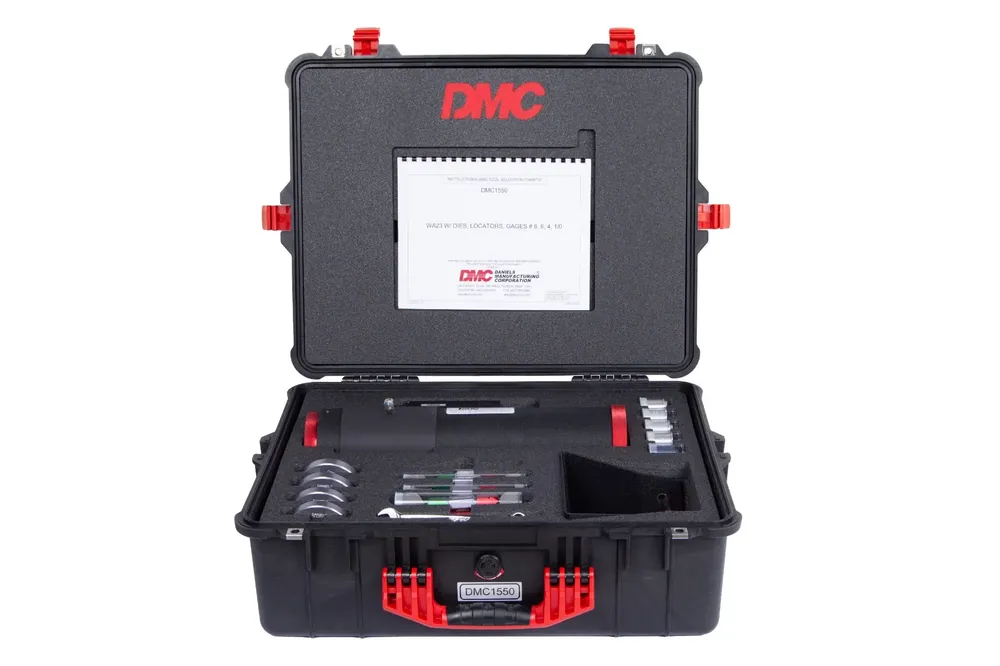

The DMC1550 kit includes the WA23® pneumatic crimp tool, Mil-Spec dies, locators, and Go/No-Go inspection gages.

The WA23 (M22520/23-01) delivers 4.5 tons of crimp force to produce four indent crimps on contacts up to 2/0 AWG. This benchtop tool is capable of crimping contacts size 8-0 AWG with no additional power boosters. The WA23 operates on standard shop air 90125 psi (5.48.16 BAR) and features a full-cycle control system that functions with a push of a button.

This kit includes 4 dies, 5 locators, and 4 gages all Mil-Qualified to the AS22520/23 specification. Custom dies and locators are available to meet specific requirements. It is important to note that only Mil-Spec dies and locators can be used for military applications. Contact DMC for commercial options for terminals and lugs.

The DMC1550 kit contains illustrated operating instructions for all the tooling included.
