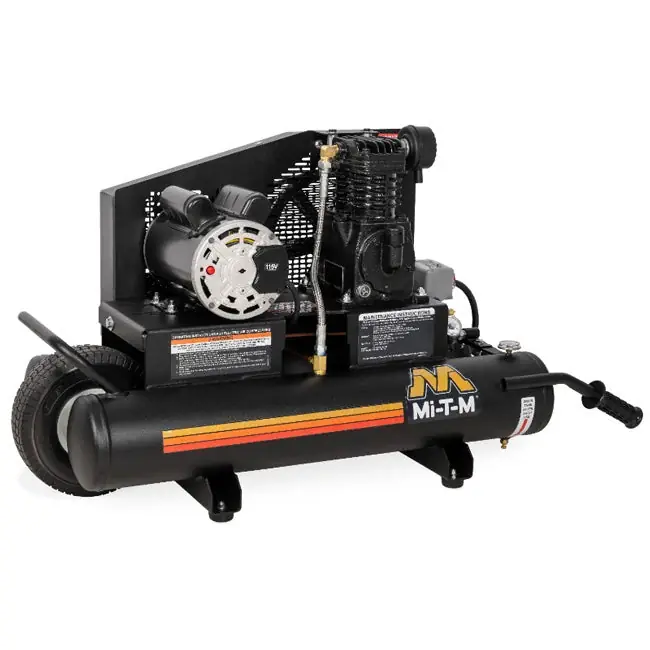

Fresh Stock Mi-T-M AM1-PE02-08M – 8-Gallon Single Stage Electric Air Compressor

Mi-T-M AM1-PE02-08M – 8-Gallon Single Stage Electric Air Compressor

MODEL: AM1-PE02-08M

AM1-PE02-08M

The popular 8-gallon electric air compressor is a great solution for both small jobs around the home and larger jobs around the garage or workshop.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor
Auto start/stop – continuous run optional · Thermal overload motor protection · 8-foot power cord

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tire

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 10-inch fly wheel · Industrial-grade pressure switch · Start/stop control set at 95 to 125-PSI (Not on continuous run MODEL:s)

Optional Accessoriess (Not Included)

AX-0002 Auto Drain/Regulator/Plastic Bowl – Drains moisture from air system

AX-0003 Manual Drain/Regulator/Metal Bowl – Drains moisture from air system

AX-0078 Stationary Option – Converts the portable MODEL: to a stationary MODEL:, removes the wheel

AX-0005 Dual Control – Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere

Specifications

CFM @ PSI: 8.2 @ 90

Horsepower/Motor: 2.0 HP, 120V, 18.8A

Plug Type: NEMA 5-20P

Net Weight: 183.00 lbs.

Shipping Weight: 203.00 lbs.

Length: 44.50 in.

Width: 18.50 in.

Height: 25.00 in.
