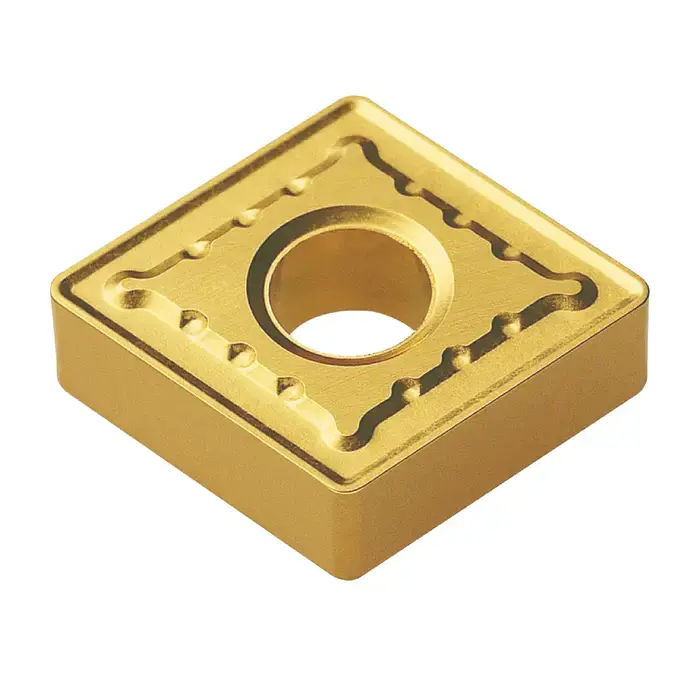

Express Delivery KORLOY 1-02-022998 – CNMG642-GR NC3030, 80° Diamond, Indexable Carbide Turning / Boring Insert

Applications

This insert supports cutting speeds from 427 to 820 sfm, feeds between 0.008 and 0.028 in/rev, and depths of cut up to 0.394 in. It is designed for general to interrupted cutting with medium to low speed roughing. The insert is suitable for machining ISO P25-P35 steels primarily, with secondary capability in M25-M35 stainless steels. Its negative rake chipbreaker and robust 80° diamond shape make it ideal for roughing and interrupted cuts, but it is not intended for fine finishing or profiling operations.

Features

• 80° Diamond Shaped Indexable Inserts.
• Versatile and dependable, “C” shaped inserts are one of the most popular shapes in the industry.
• Negative inserts can provide up to 8 cutting edges, four 80° cutting edges and four 100° cutting edges (seperate holder needed to utilize 100° cutting edge).
• The 100° cutting edges are ideal for facing operations.
• Available in multiple chipbreakers & grades.
