ESCO 10518 Pro Series 1/2 gallon air hydraulic pump 135 cu in. 1/2 Gallon Hydraulic Pump Free Returns

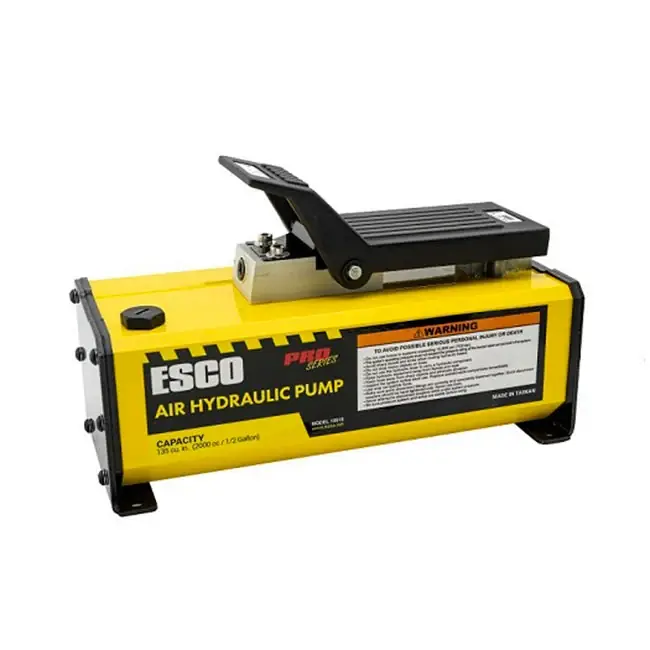

ESCO Pro Series 1/2 gallon air hydraulic pump 135 cu in. 1/2 Gallon Hydraulic Pump

MODEL# 10518

The ESCO Pro Series 1/2 Gallon Air Hydraulic Pump (Model #10518) is a compact yet powerful solution designed for a broad range of applications, including automotive, light truck, and heavy-duty tasks. With its user-friendly design, the pump requires only 80 PSI to deliver a whopping 10,000 PSI of operating hydraulic pressure, making it suitable for powering heavy cylinders, rams, bead breakers, and more.

The pump features a built-in exhaust muffler for quieter operation, and a robust foot pedal for hands-free pumping and load release. Manufactured with high-quality parts and components, it is designed to withstand rigorous use in any environment. The aluminum reservoir is lightweight, durable, and suitable for field, shop, and mobile applications. The pump motors are fully serviceable, ensuring economical repairs and maintenance.

In addition to these features, the pump is equipped with air and oil inlet filters to reduce contamination risk, an internal pressure relief valve system for overload protection, and mountable feet for versatile use. It comes with an installable fluid level dipstick for convenience. The hydraulic hose is sold separately.

Specifications

Hydraulic Pressure: 10,000 PSI

Usable Oil Capacity: 135 cu. in.

Output Flow Rate:

No Load: 80.5 cu. in. per min.

Load: 12.8 cu. in. per min.

Air Pressure Range: 40-170 PSI

Air Consumption: 24 scfm

Valve Function: Increase Hydraulic Fluid Pressure / Release Hydraulic Fluid Pressure

Sound Level: 85 dbBa

Reservoir Material: Aluminum

Threaded Connections Sizes:

Air Inlet: 1/4″-18 NPT

Hydraulic Hose Inlet: 3/8″-18 NPTF

Dimensions (Product): 12.5 (L) x 5.75 (W) x 8 (H) in.

Dimensions (Packaging): 15 (L) x 7 (W) x 8.5 (H) in.

Bottom Plate Screw Hole Size (4): 3/8″ in.

Bottom Plate Length (from hole center): 11.73 in.

Bottom Plate Width (from hole center): 4.33 in.

Weight: 22 lbs.

Warranty: 3-Year
