DMC1386 Top Pick

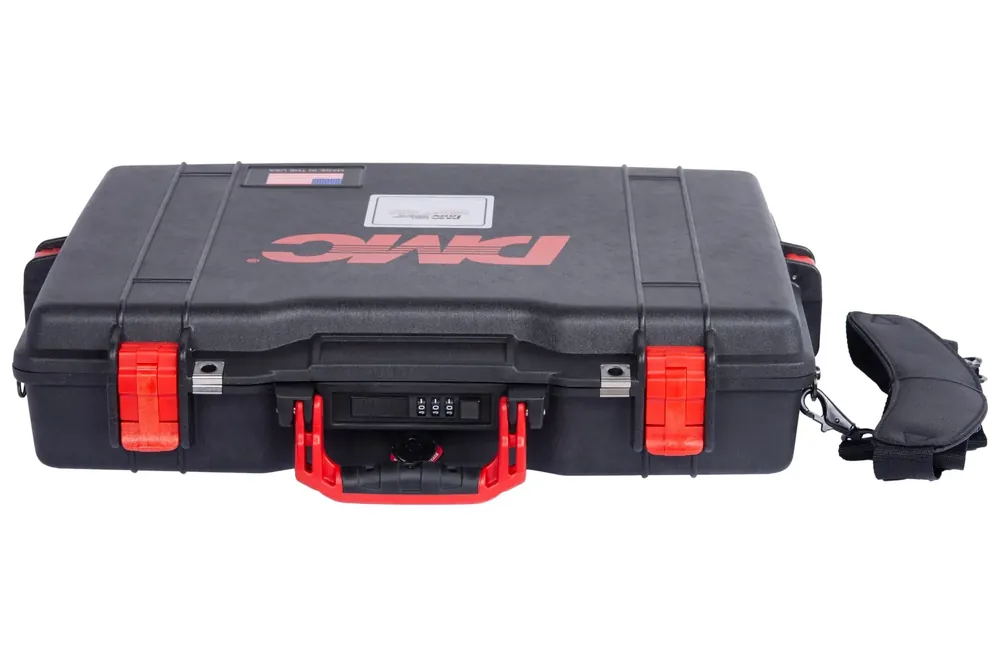

DMC1386 M22520/2-01 thru M22520/2-18 Maintenance Tool Kit.

The DMC1386 tool kit contains the AFM8 M22520/2-01 crimp tool and 17 mil-spec positioners M22520/2-02 thru M22520/2-18. Also included in the DMC1386 are tool instruction sheets.

Qualified to MIL-DTL-22520/2, the DMC M22520/2-01 was developed to meet the demonstrated need for supporting the majority of electrical systems with one versatile crimp tool frame.

The M22520/2-01 accepts the entire middle wire range of 16 through 28 AWG, with positioners which adapt it to virtually all applications consistent with others in the MIL-DTL-22520 family.
