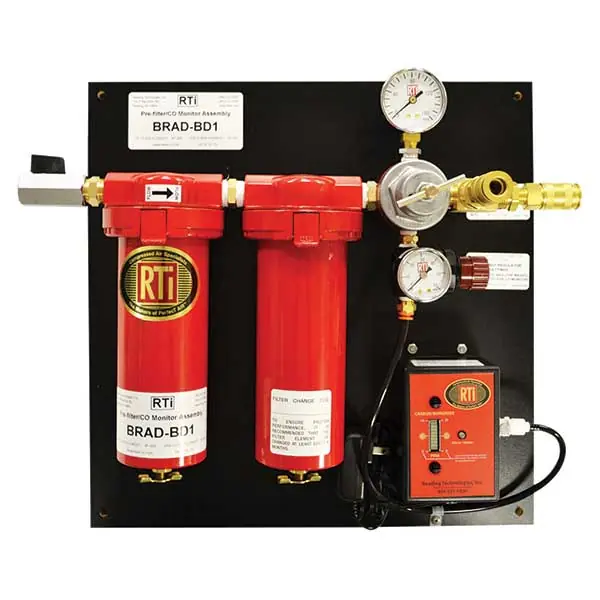

Direct From Factory RTI BRAD-BD1 Pre-filter Combo, CO Monitor w/ Regulator and Gauge

Reading Technologies BRAD-BD1Pre-filter Combo, CO Monitor, ½” Heavy Duty Regulator with 0-160 PSI Gauge, MR-1 Mini Regulator.

Breathing Air System 1-2 person pre-filter combo, CO monitor, ½” HD regulator with 0-160 PSI gauge, MR-1 mini regulator.

Replacement Element Kit:
BRAD-01C-MK
Replacement Elements:
1st stage: 4P-060
2nd Stage: 3C-061

Features:

Monitors Grade “D” breathable air

Ultra lightweight design, 1-2 Operators

Deep bed activated carbon pre-filter for hydrocarbon removal to 0.003 ppm

0.01 micron final filter designed for fine particulate and oil removal at 99.9998% efficiency

Dual ½” outlets with ¼” high flow quick disconnects provided

Rated for up to 60 scfm

Heavy duty, high flow regulator assembled with FDA lubricant

0-60 PSIG mini-regulator controls air pressure to monitor

Low air sample rate through monitor

110 Volt AC electrical

Assembly is supplied mounted on ¾” board for easy installation

NOTE: Remember Clean, Dry, Compressed Air is as important to your overall finish as paint brand, painter experience, or the spray gun. To achieve clean, dry air order your Eliminator II Desiccant Dryer today.

Perfect for paint booths and prep stations. Removes dirt, water and oil.
Patented “Inverse Flow™”design. Patented activated carbon first stage removes oil to 0.003 ppm. 2nd stage final filtration to 0.01 micron at 99.99998% efficiency.

An extremely long element life and easy, tool-free servicing make an optimum choice for your body shop and MADE in USA!

Reading Technologies, Inc. is in compliance with the State of California’s PROP 65 law for warning consumers that the product contains chemicals on the State of California’s PROP 65 list

Specifications

Part Number: BRAD-BD1

1-2 person pre-filter combo

CO monitor

½” HD regulator

with 0-160 PSI gauge

MR-1 mini regulator.

Replacement Element Kit: BRAD-01C-MK

Replacement Elements: 1st stage: 4P-060 / 2nd Stage: 3C-061

Rated for Up to 60 scfm

110 Volt AC Electrical

Port size – 1/2″ Inlet – Port size – 1/4″ Outlet1 Gun (spray application)1st Stage Element 4P-060 2nd Stage Element DE-401

Applications:

Paint Booths

Lacquer Spraying

Air Tools, Sand Blasting, Sanding Impacts, Buffing

Ideal for Mechanical Section of Shop

TP Tools Tip: For best results, place water filters as far away from the compressor as possible (at least 25 ft). This allows the air to cool and condense so water can be removed efficiently.
