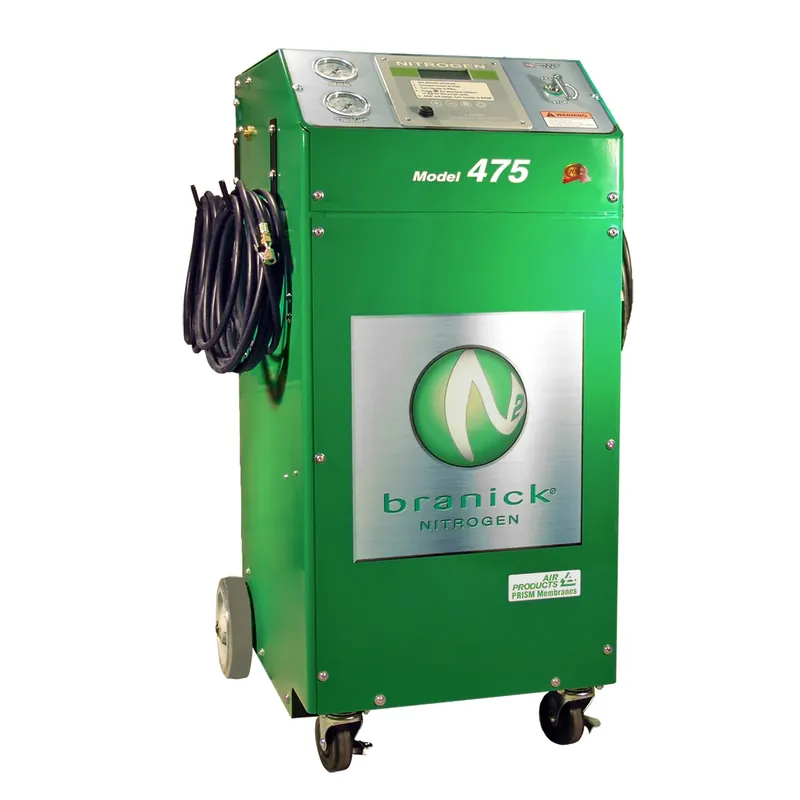

Branick 475 Mobile Nitrogen Generator System PN 00-0085 High Quality

Branick 475 Mobile Nitrogen Generator System PN 00-0085

Part Number: 00-0085

Our mobile systems deliver speed and high purity while allowing you to stay on the go. The 475 comes with a 30 gallon tank and can convert a passenger vehicle without being tethered to an air source. Four hoses with clip chucks are standard, though there are six conversion ports capable of handling duallies or spares. Because of the PRISM Membrane, the system also acts as an air dryer, which means the system produces a more consistent purity over the lifespan of the machine. And, if you want to keep your mobile system mobile, but also want nitrogen at your tire changing location, our mobile units have an auxiliary port on the back so you can fill any size storage tank for extra capacity. It’s like having two systems for the price of one.

Specifications

Air Input Range 100 to 175 psi

Air Input* 7.8 cfm

Nitrogen Output* 4.0 cfm

Nitrogen Purity Adj 95% – 99.5%

Operating Temperature 40° to 150° F

Inlet Port (Female) 3/8” NPT

Outlet Port (Female) 3/8” NPT

Nitrogen Purity Port Yes

Auto Shut-Off Yes

Pre-Filters 2

N2 Outlet Pressure Gauge Yes

Air Inlet Pressure Gauge Yes

Weight 350 lbs

Hoses 4 Hooks

Inflator Set Press. Range 5 psi to 145 psi

Inflator Accuracy +/-0.5% Full Scale

Display Increments 1 psi

Power Supply 12v DC SLA

Rechargeable Yes

Dimensions (inches) 29 D X 29 W X 48 H

Weight (lbs) 380

Features

30 Gallon Tank

Six conversion inflator ports

PRISM Membrane

7-Year membrane warranty

Benefits

Faster Inflation times

Fill multiple tires at once; capable of handling duallies or spaces

Acts as air dryer to produce more consistent purity

Longest Warranty term on the market!
